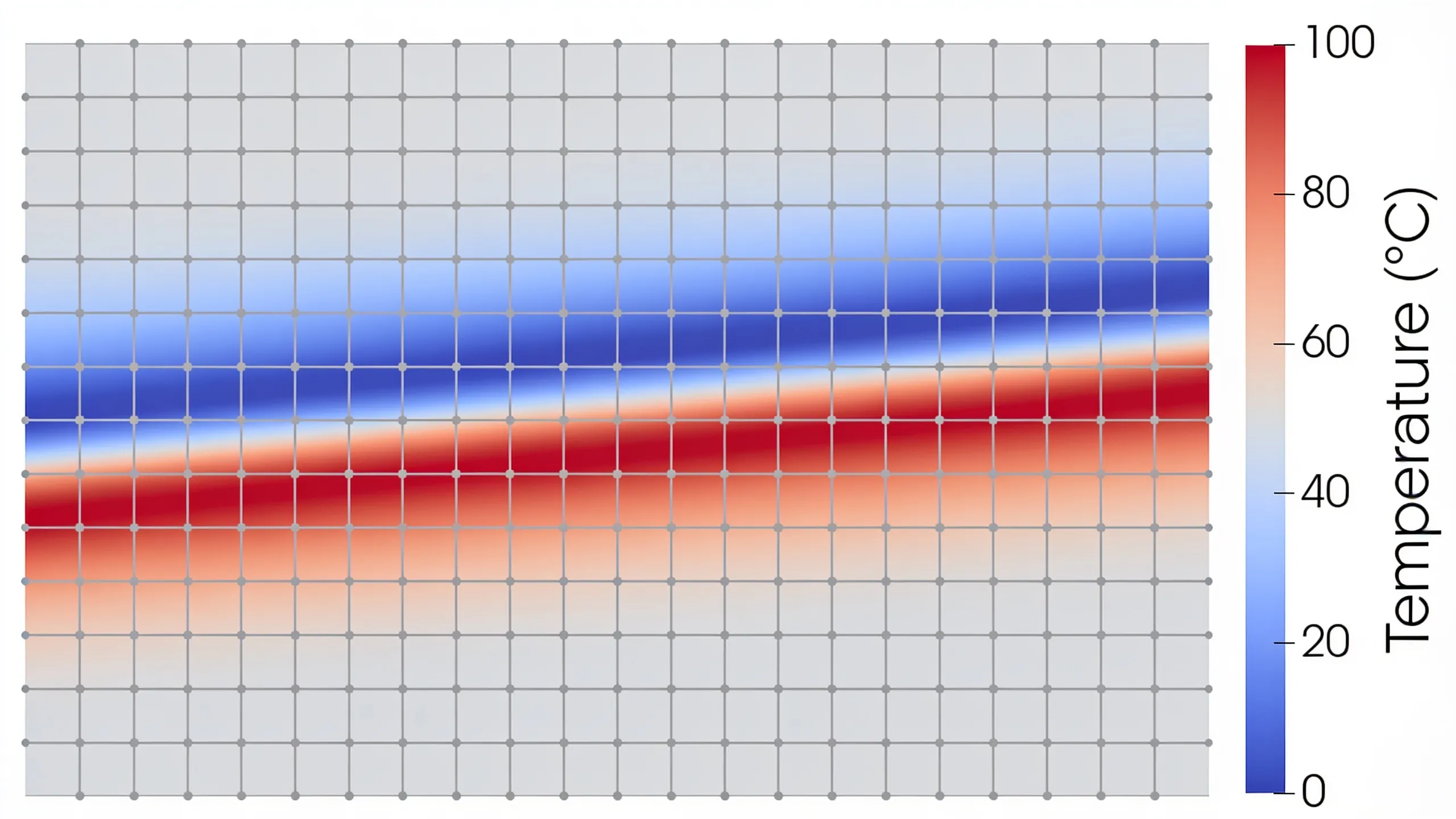

Solving Partial Differential Equations with scipy.integrate.odeint

Solving Partial Differential Equations with scipy.integrate.odeint

Partial Differential Equations (PDEs) are mathematical equations that involve multiple independent variables and their partial derivatives. They play a pivotal role in various fields such as physics, engineering, and finance, modeling phenomena like heat conduction, fluid dynamics, and wave propagation. Understanding PDEs especially important because they describe how physical quantities evolve over time and space, providing insights into complex systems.

Unlike ordinary differential equations (ODEs), which involve a single independent variable, PDEs encompass multiple dimensions, making their analysis significantly more challenging. The solutions to these equations can reveal the behavior of a system under different conditions, allowing scientists and engineers to predict outcomes and design effective interventions.

For instance, in heat transfer, the heat equation, a type of PDE, models how heat diffuses through a material. In fluid mechanics, the Navier-Stokes equations describe the motion of viscous fluid substances. These equations are foundational in understanding the dynamics of various physical systems and are essential in creating accurate simulations.

However, solving PDEs analytically is often impractical, especially for complex boundary conditions and geometries. This is where numerical methods come into play. Through numerical solutions, we can approximate the behavior of systems governed by PDEs, enabling us to tackle problems that would otherwise remain unsolvable.

In Python, the scipy.integrate.odeint function offers a powerful tool for solving ordinary differential equations, but it can also be leveraged to address certain types of PDEs through specific transformations. By discretizing the spatial dimensions and applying numerical techniques, we can convert PDEs into a system of ODEs, allowing us to utilize odeint effectively.

Understanding the theoretical underpinnings of PDEs and their numerical solutions is essential for anyone working in fields that rely on mathematical modeling. The ability to simulate complex systems not only enhances our understanding but also drives innovation in technology and science.

# Example of setting up a simple PDE as an ODE system
import numpy as np
from scipy.integrate import odeint

# Define parameters
L = 10.0  # Length of the domain
N = 10    # Number of spatial points
x = np.linspace(0, L, N)  # Spatial grid
dx = x[1] - x[0]  # Spatial step

# Define the initial condition
u0 = np.sin(np.pi * x / L)

# Define the PDE converted to an ODE system
def pde_system(u, t):
    dudt = np.zeros(N)
    for i in range(1, N-1):
        dudt[i] = (u[i+1] - 2*u[i] + u[i-1]) / dx**2  # Finite difference method
    return dudt

# Time points for the simulation
t = np.linspace(0, 1, 100)

# Solve the system
solution = odeint(pde_system, u0, t)

Overview of the scipy.integrate.odeint Function

The scipy.integrate.odeint function is a cornerstone of the SciPy library, providing an efficient and simpler method for integrating ordinary differential equations (ODEs). While it is primarily designed for ODEs, it can be utilized for certain types of partial differential equations (PDEs) by transforming them into a set of ODEs through discretization techniques. Understanding how to effectively use odeint is essential for numerical analysis and simulations in scientific computing.

At its core, the odeint function requires two main components: the function that defines the system of equations and the initial conditions. The function must output the derivatives of the system’s state variables, while the initial conditions specify the starting values for these variables. The function integrates these equations over a specified time interval, producing a solution that approximates the system’s behavior.

To illustrate the use of odeint, think a simple example where we model the diffusion of heat in a one-dimensional rod. The heat equation, a common PDE, can be approximated using a finite difference method to transform it into a system of ODEs. In this case, we discretize the spatial domain into a grid, allowing us to represent the temperature at each point in the rod as a function of time.

Here’s how we can set up our heat diffusion problem using odeint:

import numpy as np
from scipy.integrate import odeint

# Define parameters
L = 10.0  # Length of the domain
N = 10    # Number of spatial points
x = np.linspace(0, L, N)  # Spatial grid
dx = x[1] - x[0]  # Spatial step

# Define the initial condition
u0 = np.sin(np.pi * x / L)

# Define the PDE converted to an ODE system
def pde_system(u, t):
    dudt = np.zeros(N)
    for i in range(1, N-1):
        dudt[i] = (u[i+1] - 2*u[i] + u[i-1]) / dx**2  # Finite difference method
    return dudt

# Time points for the simulation
t = np.linspace(0, 1, 100)

# Solve the system
solution = odeint(pde_system, u0, t)

In this code, we define a spatial grid along the length of the rod and assign an initial temperature distribution using a sine function. The pde_system function implements the finite difference method to approximate the derivatives. The core of the heat diffusion process happens in the loop, where we calculate the rate of change at each spatial point based on its neighbors.

By calling odeint, we pass our system of equations and initial conditions, resulting in a time-evolved solution that captures the dynamics of heat conduction over the specified time interval. This approach allows us to leverage the power of numerical methods, transforming a complex PDE into a manageable system of ODEs that can be solved efficiently.

Implementing odeint for PDEs via discretization opens up a world of possibilities for simulating real-world phenomena, making it an invaluable tool for researchers and engineers alike. As we continue to explore numerical solutions for PDEs, understanding the intricacies of odeint will empower us to tackle increasingly complex models with confidence.

Implementing Numerical Solutions for PDEs

import numpy as np
from scipy.integrate import odeint
import matplotlib.pyplot as plt

# Define parameters for the simulation
L = 10.0  # Length of the domain
N = 10    # Number of spatial points
x = np.linspace(0, L, N)  # Spatial grid
dx = x[1] - x[0]  # Spatial step

# Define the initial condition
u0 = np.sin(np.pi * x / L)

# Define the PDE converted to an ODE system
def pde_system(u, t):
    dudt = np.zeros(N)
    for i in range(1, N-1):
        dudt[i] = (u[i+1] - 2*u[i] + u[i-1]) / dx**2  # Finite difference method
    return dudt

# Time points for the simulation
t = np.linspace(0, 1, 100)

# Solve the system
solution = odeint(pde_system, u0, t)

# Visualize the results
plt.figure(figsize=(8, 5))
for i in range(0, len(t), 10):  # Plot every 10th time point
    plt.plot(x, solution[i], label=f't={t[i]:.2f}')
plt.title('Heat Diffusion in a Rod')
plt.xlabel('Position along the rod')
plt.ylabel('Temperature')
plt.legend()
plt.grid()
plt.show()

In this extended implementation, we also include a visualization of the results. After solving the system of ODEs, we use Matplotlib to plot the temperature distribution along the rod at different time intervals. The plotted results illustrate how the initial sine wave dissipates over time, demonstrating the diffusion process driven by the heat equation.

It is important to understand that the choice of spatial discretization and time stepping can significantly affect the accuracy and stability of the numerical solution. The finite difference method we used is simple and effective for many problems, but more complex methods, such as spectral methods or finite element methods, may be necessary for problems with more intricate geometries or boundary conditions.

When implementing numerical solutions for PDEs, one must also be mindful of factors like stability and convergence. In the case of our heat equation, the stability of the solution is generally ensured if the time step is sufficiently small relative to the spatial discretization. This relationship is often summarized by the Courant-Friedrichs-Lewy (CFL) condition, which provides a criterion for the chosen time and space steps to maintain stability in explicit schemes.

With the power of Python and libraries like SciPy, researchers can methodically explore various numerical techniques to tackle PDEs, each with its strengths and weaknesses. The process of transforming a PDE into a solvable system of ODEs through discretization is not merely a mechanical procedure; it involves a deep understanding of the underlying physics and mathematics. As we delve deeper into numerical solutions for PDEs, the ability to implement and adapt these methods will be an essential skill for any scientist or engineer.

Analyzing and Visualizing Results from Simulations

import numpy as np
import matplotlib.pyplot as plt

# Define parameters for the simulation
L = 10.0  # Length of the domain
N = 10    # Number of spatial points
x = np.linspace(0, L, N)  # Spatial grid
dx = x[1] - x[0]  # Spatial step

# Define the initial condition
u0 = np.sin(np.pi * x / L)

# Define the PDE converted to an ODE system
def pde_system(u, t):
    dudt = np.zeros(N)
    for i in range(1, N-1):
        dudt[i] = (u[i+1] - 2*u[i] + u[i-1]) / dx**2  # Finite difference method
    return dudt

# Time points for the simulation
t = np.linspace(0, 1, 100)

# Solve the system
solution = odeint(pde_system, u0, t)

# Visualize the results
plt.figure(figsize=(8, 5))
for i in range(0, len(t), 10):  # Plot every 10th time point
    plt.plot(x, solution[i], label=f't={t[i]:.2f}')
plt.title('Heat Diffusion in a Rod')
plt.xlabel('Position along the rod')
plt.ylabel('Temperature')
plt.legend()
plt.grid()
plt.show()

Once we have obtained the numerical solutions, analyzing and visualizing the results becomes paramount. Visualization not only aids in interpreting the behavior of the solution but also serves as a powerful tool for validating the correctness of the numerical methods employed. By plotting the results, we can gain insights into the evolution of the system over time, allowing us to observe phenomena such as diffusion, wave propagation, or other behaviors dictated by the underlying PDE.

In the provided code snippet, we utilize Matplotlib to visualize the temperature distribution in a one-dimensional rod at various time intervals. The results demonstrate how the initial sine wave dissipates over time, reflecting the physical process of heat diffusion. This kind of visualization is critical, as it not only presents clarity regarding the solution’s behavior but also highlights any unexpected patterns or anomalies that may arise during simulations.

When analyzing the results, there are several key aspects to consider:

  • Ensure that the numerical solution remains stable throughout the simulation. Instabilities can manifest as oscillations or unbounded growth in the solution.
  • As the mesh is refined (by increasing the number of spatial points or decreasing the time step), the solution should converge to a stable solution. This can be checked by running simulations at different resolutions and observing the consistency of results.
  • Compare the results against known analytical solutions, if available, or validate against experimental data. The numerical model should reflect the expected physical behavior of the system.

The use of color maps or contour plots can further enhance the visualization, especially for higher-dimensional PDEs. For instance, a 2D heat map can illustrate temperature distribution over a surface, providing a more intuitive understanding of the spatial dynamics involved. This can be achieved easily in Matplotlib using functions such as imshow or contourf, allowing for rich visual representations of the simulated phenomena.

In summation, the process of analyzing and visualizing results from PDE simulations is a critical step in numerical modeling. By effectively employing visualization techniques, we can extract meaningful insights from our numerical solutions, validate our methods, and communicate our findings to a broader audience, whether in academic publications or engineering reports. The interplay between computation and visualization forms a cornerstone of modern scientific inquiry, enabling us to tackle increasingly complex systems with clarity and confidence.
